Unet神经网络

Unet网络是一种语义分割的技术，图像语义分割（semantic segmentation），从字面意思上理解就是让计算机根据图像的语义来进行分割，例如让计算机在输入图片的情况下，能够输出每个像素所属的类别。语义在语音识别中指的是语音的意思，在图像领域，语义指的是图像的内容。

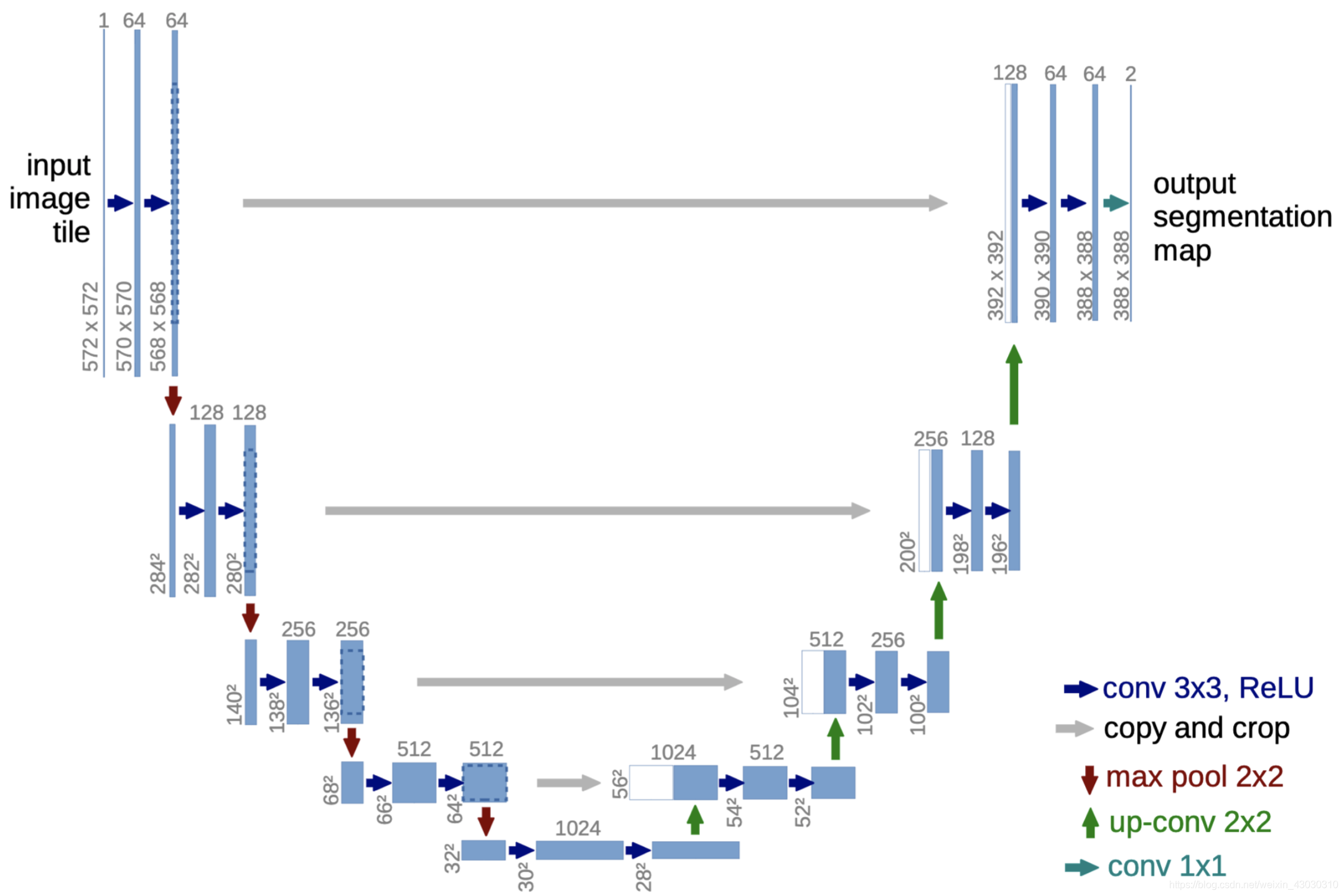

U-Net是一种用于生物医学图像分割的卷积神经网络架构。它由Olaf Ronneberger、Philipp Fischer和Thomas Brox在2015年提出。该架构以其U形结构而闻名，包括一个收缩路径和一个扩展路径，使其能够捕捉上下文并实现精确的定位。

alt text

我们可以把U-Net网络分为两个部分，即主干特征提取部分和加强特征提取部分。主干特征提取部分的任务提取五个初步有效特征层。加强特征提取部分的任务是将编码器提取到的特征进行上采样，并通过一系列的卷积和上采样层来将五个特征有效层合成为一个。

首先我们需要先了解几个概念最大池化 Max pooling is a widely used operation in convolutional neural networks (CNNs) to reduce the spatial dimensions of feature maps and enhance computational efficiency. It involves selecting the maximum value from a defined window (kernel) within the input feature map, effectively downsampling the input while retaining the most significant features. 简单来说就是为了减少计算量和消耗而使用的类似于卷积神经网络的一种方法，不同的是最大池化只选范围里面的最大值 Max pooling operates by sliding a window (kernel) over the input feature map and selecting the maximum value within each window. This process reduces the size of the feature map, making the model more efficient and less prone to overfitting. The primary parameters for max pooling are 通过选择最大值的方式来使得特征层的大小变小

主干特征提取部分

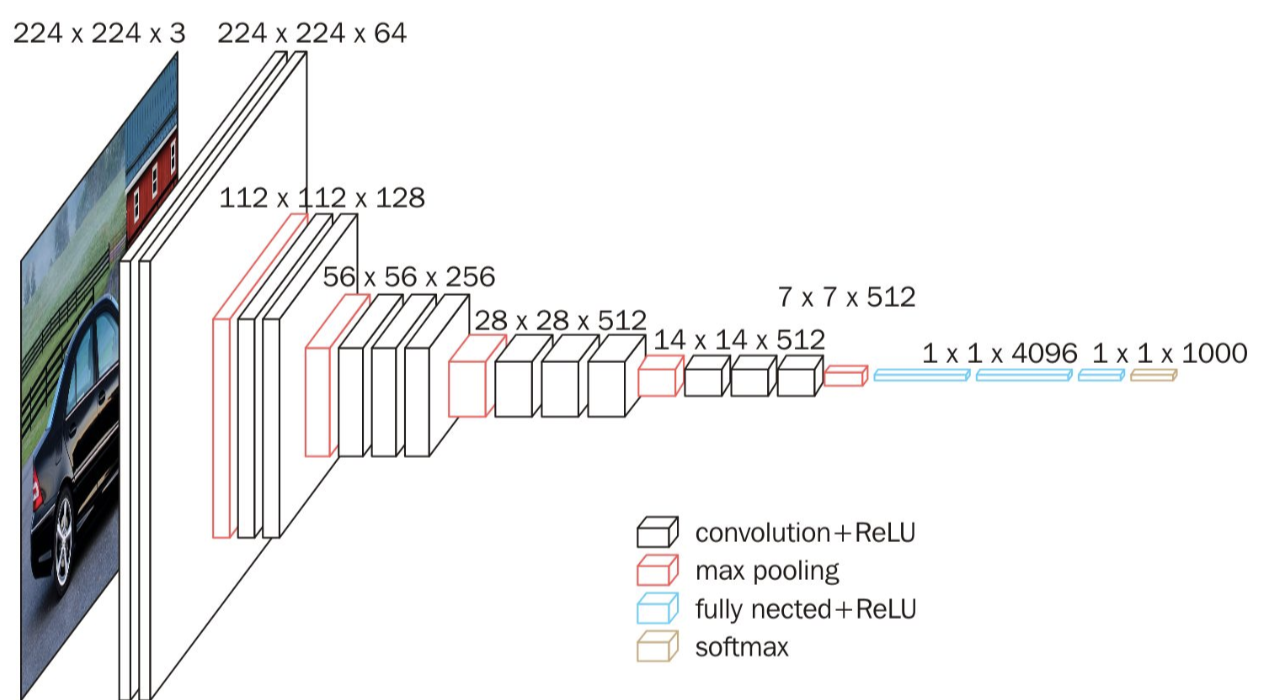

Unet的主干特征提取部分是由CNN以及最大池化来组成的，整体结构和VGG16类似

alt text

当输入的图像大小为224x224x3的时候，具体执行方式如下： 1、conv1：进行两次[3,3]的64通道的卷积，获得一个[224,224,64]的初步有效特征层，再进行2X2最大池化，获得一个[112,112,64]的特征层。 2、conv2：进行两次[3,3]的128通道的卷积，获得一个[112,112,128]的初步有效特征层，再进行2X2最大池化，获得一个[56,56,128]的特征层。 3、conv3：进行三次[3,3]的256通道的卷积，获得一个[56,56,256]的初步有效特征层，再进行2X2最大池化，获得一个[56,56,512]的特征层。 4、conv4：进行三次[3,3]的512通道的卷积，获得一个[56,56,512]的初步有效特征层，再进行2X2最大池化，获得一个[28,28,512]的特征层。 5、conv5：进行三次[3,3]的512通道的卷积，获得一个[28,28,512]的初步有效特征层。

import torch
import torch.nn as nn
from torchvision.models.utils import load_state_dict_from_url

class VGG(nn.Module):
    def __init__(self, features, num_classes=1000):
        super(VGG, self).__init__()
        self.features = features
        self.avgpool = nn.AdaptiveAvgPool2d((7, 7))
        self.classifier = nn.Sequential(
            nn.Linear(512 * 7 * 7, 4096),
            nn.ReLU(True),
            nn.Dropout(),
            nn.Linear(4096, 4096),
            nn.ReLU(True),
            nn.Dropout(),
            nn.Linear(4096, num_classes),
        )
        self._initialize_weights()

    def forward(self, x):
        x = self.features(x)
        x = self.avgpool(x)
        x = torch.flatten(x, 1)
        x = self.classifier(x)
        return x

    def _initialize_weights(self):
        for m in self.modules():
            if isinstance(m, nn.Conv2d):
                nn.init.kaiming_normal_(m.weight, mode='fan_out', nonlinearity='relu')
                if m.bias is not None:
                    nn.init.constant_(m.bias, 0)
            elif isinstance(m, nn.BatchNorm2d):
                nn.init.constant_(m.weight, 1)
                nn.init.constant_(m.bias, 0)
            elif isinstance(m, nn.Linear):
                nn.init.normal_(m.weight, 0, 0.01)
                nn.init.constant_(m.bias, 0)


def make_layers(cfg, batch_norm=False, in_channels = 3):
    layers = []
    for v in cfg:
        if v == 'M':
            layers += [nn.MaxPool2d(kernel_size=2, stride=2)]#列表搭建网络，如果是M则是最大池化
            #其他就是卷积层
        else:
            conv2d = nn.Conv2d(in_channels, v, kernel_size=3, padding=1)
            if batch_norm:
                layers += [conv2d, nn.BatchNorm2d(v), nn.ReLU(inplace=True)]
            else:
                layers += [conv2d, nn.ReLU(inplace=True)]
            in_channels = v
    return nn.Sequential(*layers)

cfgs = {
    'D': [64, 64, 'M', 128, 128, 'M', 256, 256, 256, 'M', 512, 512, 512, 'M', 512, 512, 512, 'M']
}


def VGG16(pretrained, in_channels, **kwargs):
    model = VGG(make_layers(cfgs["D"], batch_norm = False, in_channels = in_channels), **kwargs)
    if pretrained:
        state_dict = load_state_dict_from_url("https://download.pytorch.org/models/vgg16-397923af.pth", model_dir="./model_data")
        model.load_state_dict(state_dict)

    del model.avgpool
    del model.classifier
    return model

加强特征提取结构

利用第一步我们可以获得五个初步的有效特征层，在加强特征提取网络这里，我们会利用这五个初步的有效特征层进行特征融合，特征融合的方式就是对特征层进行上采样并且进行堆叠。上采样是一种放大矩阵的方法，选择插入的算法选择合适的数值来插入

import torch
import torch.nn as nn
import torch.nn.functional as F
from torchsummary import summary
from nets.vgg import VGG16


class unetUp(nn.Module):
    def __init__(self, in_size, out_size):
        super(unetUp, self).__init__()
        self.conv1 = nn.Conv2d(in_size, out_size, kernel_size=3, padding=1)
        self.conv2 = nn.Conv2d(out_size, out_size, kernel_size=3, padding=1)
        self.up = nn.UpsamplingBilinear2d(scale_factor=2)

    def forward(self, inputs1, inputs2):

        outputs = torch.cat([inputs1, self.up(inputs2)], 1)
        outputs = self.conv1(outputs)
        outputs = self.conv2(outputs)
        return outputs


class Unet(nn.Module):
    def __init__(self, num_classes=21, in_channels=3, pretrained=False):
        super(Unet, self).__init__()
        self.vgg = VGG16(pretrained=pretrained,in_channels=in_channels)
        in_filters = [192, 384, 768, 1024]
        out_filters = [64, 128, 256, 512]
        # upsampling
        self.up_concat4 = unetUp(in_filters[3], out_filters[3])
        self.up_concat3 = unetUp(in_filters[2], out_filters[2])
        self.up_concat2 = unetUp(in_filters[1], out_filters[1])
        self.up_concat1 = unetUp(in_filters[0], out_filters[0])

        # final conv (without any concat)
        self.final = nn.Conv2d(out_filters[0], num_classes, 1)

    def forward(self, inputs):
        feat1 = self.vgg.features[  :4 ](inputs)
        feat2 = self.vgg.features[4 :9 ](feat1)
        feat3 = self.vgg.features[9 :16](feat2)
        feat4 = self.vgg.features[16:23](feat3)
        feat5 = self.vgg.features[23:-1](feat4)

        up4 = self.up_concat4(feat4, feat5)
        up3 = self.up_concat3(feat3, up4)
        up2 = self.up_concat2(feat2, up3)
        up1 = self.up_concat1(feat1, up2)

        final = self.final(up1)

        return final

    def _initialize_weights(self, *stages):
        for modules in stages:
            for module in modules.modules():
                if isinstance(module, nn.Conv2d):
                    nn.init.kaiming_normal_(module.weight)
                    if module.bias is not None:
                        module.bias.data.zero_()
                elif isinstance(module, nn.BatchNorm2d):
                    module.weight.data.fill_(1)
                    module.bias.data.zero_()

预测

利用1、2步，我们可以获取输入进来的图片的特征，此时，我们需要利用特征获得预测结果。

利用特征获得预测结果的过程为：利用一个1x1卷积进行通道调整，将最终特征层的通道数调整成num_classes。

import torch
import torch.nn as nn
import torch.nn.functional as F
from torchsummary import summary
from nets.vgg import VGG16


class unetUp(nn.Module):
    def __init__(self, in_size, out_size):
        super(unetUp, self).__init__()
        self.conv1 = nn.Conv2d(in_size, out_size, kernel_size=3, padding=1)
        self.conv2 = nn.Conv2d(out_size, out_size, kernel_size=3, padding=1)
        self.up = nn.UpsamplingBilinear2d(scale_factor=2)

    def forward(self, inputs1, inputs2):

        outputs = torch.cat([inputs1, self.up(inputs2)], 1)
        outputs = self.conv1(outputs)
        outputs = self.conv2(outputs)
        return outputs


class Unet(nn.Module):
    def __init__(self, num_classes=21, in_channels=3, pretrained=False):
        super(Unet, self).__init__()
        self.vgg = VGG16(pretrained=pretrained,in_channels=in_channels)
        in_filters = [192, 384, 768, 1024]
        out_filters = [64, 128, 256, 512]
        # upsampling
        self.up_concat4 = unetUp(in_filters[3], out_filters[3])
        self.up_concat3 = unetUp(in_filters[2], out_filters[2])
        self.up_concat2 = unetUp(in_filters[1], out_filters[1])
        self.up_concat1 = unetUp(in_filters[0], out_filters[0])

        # final conv (without any concat)
        self.final = nn.Conv2d(out_filters[0], num_classes, 1)

    def forward(self, inputs):
        feat1 = self.vgg.features[  :4 ](inputs)
        feat2 = self.vgg.features[4 :9 ](feat1)
        feat3 = self.vgg.features[9 :16](feat2)
        feat4 = self.vgg.features[16:23](feat3)
        feat5 = self.vgg.features[23:-1](feat4)

        up4 = self.up_concat4(feat4, feat5)
        up3 = self.up_concat3(feat3, up4)
        up2 = self.up_concat2(feat2, up3)
        up1 = self.up_concat1(feat1, up2)

        final = self.final(up1)

        return final

    def _initialize_weights(self, *stages):
        for modules in stages:
            for module in modules.modules():
                if isinstance(module, nn.Conv2d):
                    nn.init.kaiming_normal_(module.weight)
                    if module.bias is not None:
                        module.bias.data.zero_()
                elif isinstance(module, nn.BatchNorm2d):
                    module.weight.data.fill_(1)
                    module.bias.data.zero_()
